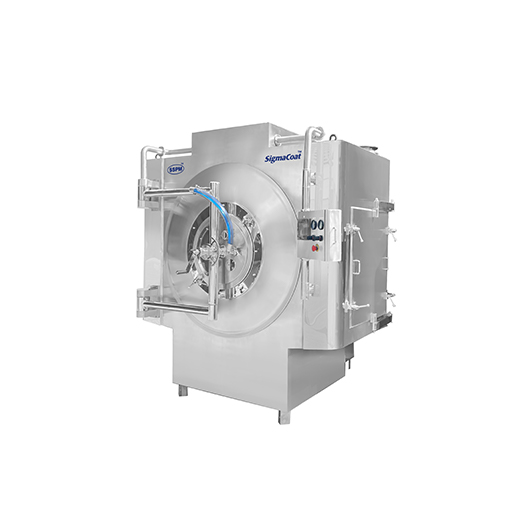

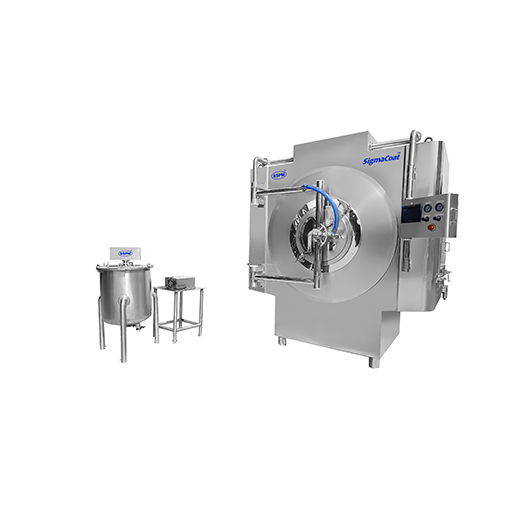

SigmaCoat™ Tablet Coating System
“Your Global Partner For Better Tablet Coating: Use Your Freedom To Invest”
In the span of 23 years, SSPM has marked its footprints by installing 550+ Sigmacoat™ globally with positive feedback and an active repeat order ratio.
Our range of tablet coating machines is suitable to handle a variety of coating applications, including film, enteric, and sugar coating
SigmaCoat™ comes with striking features such as accurate perforation of the coating pan with no sharp edges, spray nozzles with an anti-bearding system that give full coverage and zero clogging, and an integrated, highly effective pump for spraying or dosing of solution. Many other features ensure fast, reliable, and more precise tablet coating.
Our advanced automation and control system makes operations fast and easier to understand. You can operate, control, and maintain everything with one single touch.
We can also provide 21 CFR Part 11 compliance as per request.
Our design and technology ensure product quality and safety and fulfil ethical standards and CGMP standards. Therefore, compliance with regulations makes it suitable to pass all audits.
Key Features

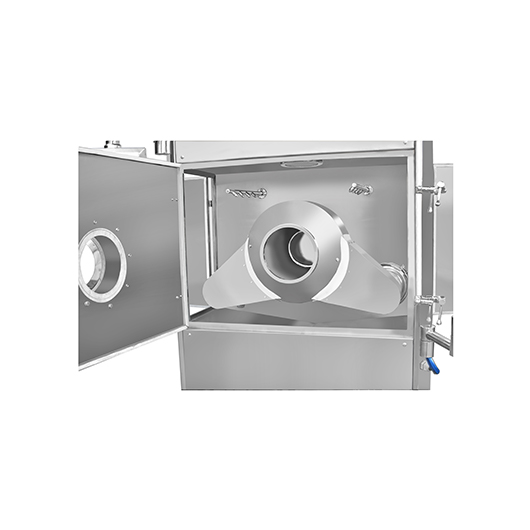

- Perforated pan
- Auto-discharge facility
- Suitable for film, enteric, and sugar coating
- Flame-proof construction
- Air handling unit with PRE/MICRO and HEPA filter
- Wet scrubber or dry scrubber

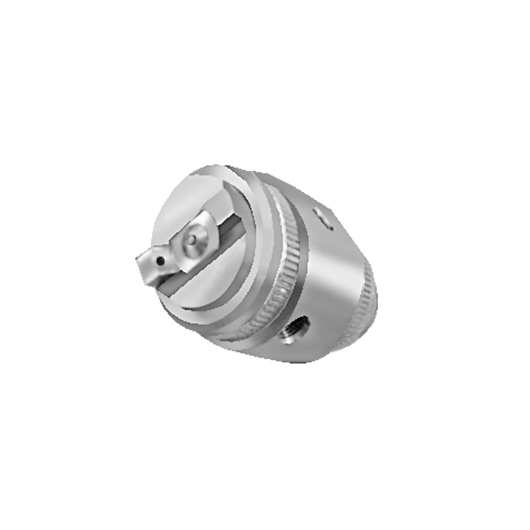

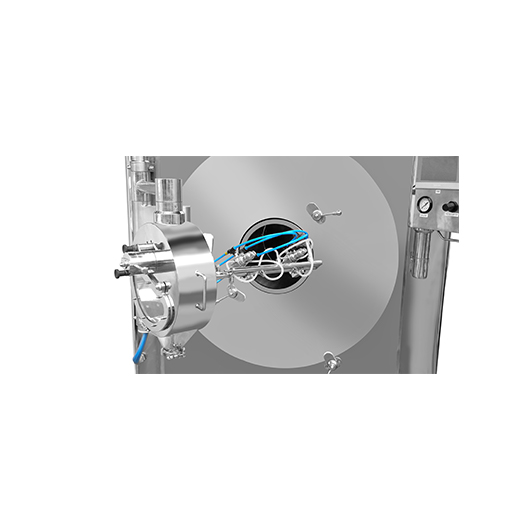

- Anti-bearding spray nozzle as per coating pan size
- 3-level adjustment of spray nozzle alignment
- Multi-head peristaltic pump

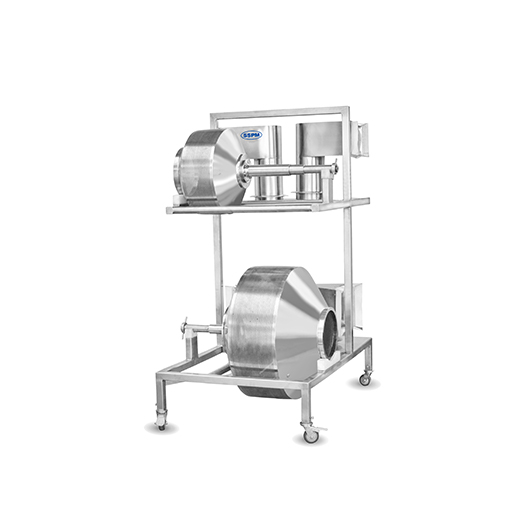

- Interchangeable pan facility
- Infrared sensor for precise measurement of temperature within the pan body
- User-friendly control system
- 21 CFR PART 11 COMPLIANCE
- Wash-in-place system for effective cleaning
- User-friendly control system
- Containment Coating Solution for R & D Coaters
We can manufacture equipment according to the below standards.
Technical Specification
| Model / Size | Sigma Coat 12" | Sigma Coat 18" | Sigma Coat 24" | Sigma Coat 30" | Sigma Coat 36" | Sigma Coat 48" | Sigma Coat 52" | Sigma Coat 60" | Sigma Coat 66" | Sigma Coat 72" | SIGMA FORM 300 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pan Diameter [mm] | 305 | 455 | 610 | 760 | 910 | 1220 | 1320 | 1524 | 1675 | 1830 | |
| Pan Mouth Opening [mm] | 175 | 175 | 250 | 360 | 360 | 450 | 475 | 500 | 550 | 600 | |
| Brim Volume [Ltrs.] | 1.4 | 7 | 20 | 40 | 70 | 200 | 270 | 400 | 470 | 670 | 150 KG (MIN) |
| Optimum Batch [Kg] Capacity @ 0.5 B.D. | 1 | 5 | 15 | 30 | 50 | 150 | 200 | 300 | 350 | 500 | 150 KG (MIN) |
| Pan Motor [HP] | 0.5 | 0.5 | 1.5 | 5 | 5 | 7.5 | 7.5 | 7.5 | 7.5 | 15 | 150 KG (MIN) |
| Process Air Volume [Inlet CFM] | 825 | 825 | 1200 | 1500 | 1500 | 2500 | 3300 | 4500 | 6000 | 7000 | 150 KG (MIN) |
| Process Air Volume [Outlet CFM] | 900 | 900 | 1500 | 2000 | 2000 | 3500 | 4500 | 6000 | 7500 | 8000 | 150 KG (MIN) |
